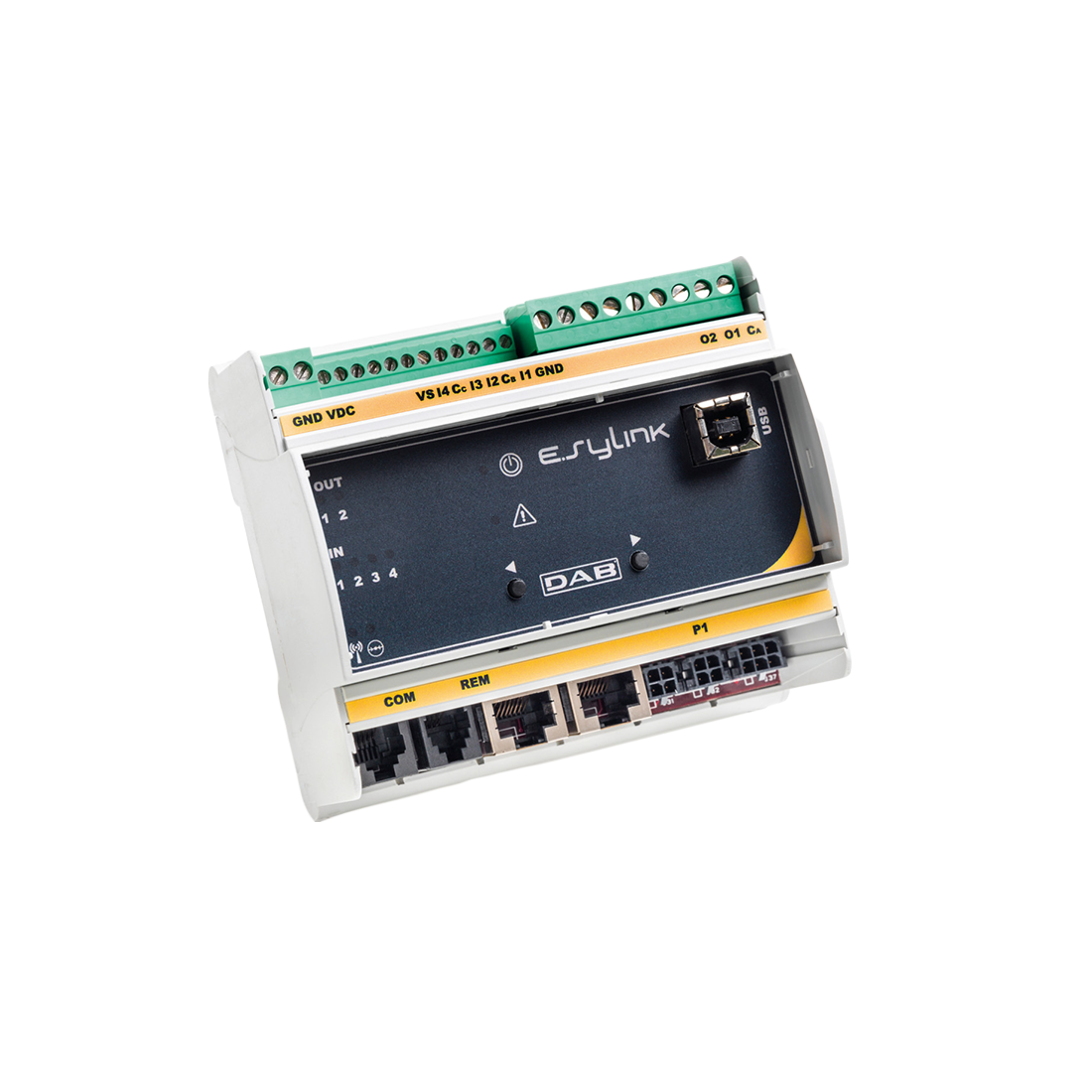

ESYLINK is a DAB accessory equipped with a wireless interface (802.15.4) designed to enhance the functionality of the ESYBOX pump system. ESYLINK is provided to be wired and enhances the monitoring, control, and maintenance capabilities of ESYBOX systems through wireless connectivity and versatile input/output options.
Benefits
Dedicated wireless connection with ESYBOX
Supports 4 digital inputs (pressure switch, float, etc.)
Controls 2 relay outputs (alarms, etc.)
Capability to connect an auxiliary pressure sensor
Allows for ESYBOX software updates
Easily updated via PC
Designed for installation in standard electric boxes with DIN modules (size: 6 modules)
LED indication for status and alarms

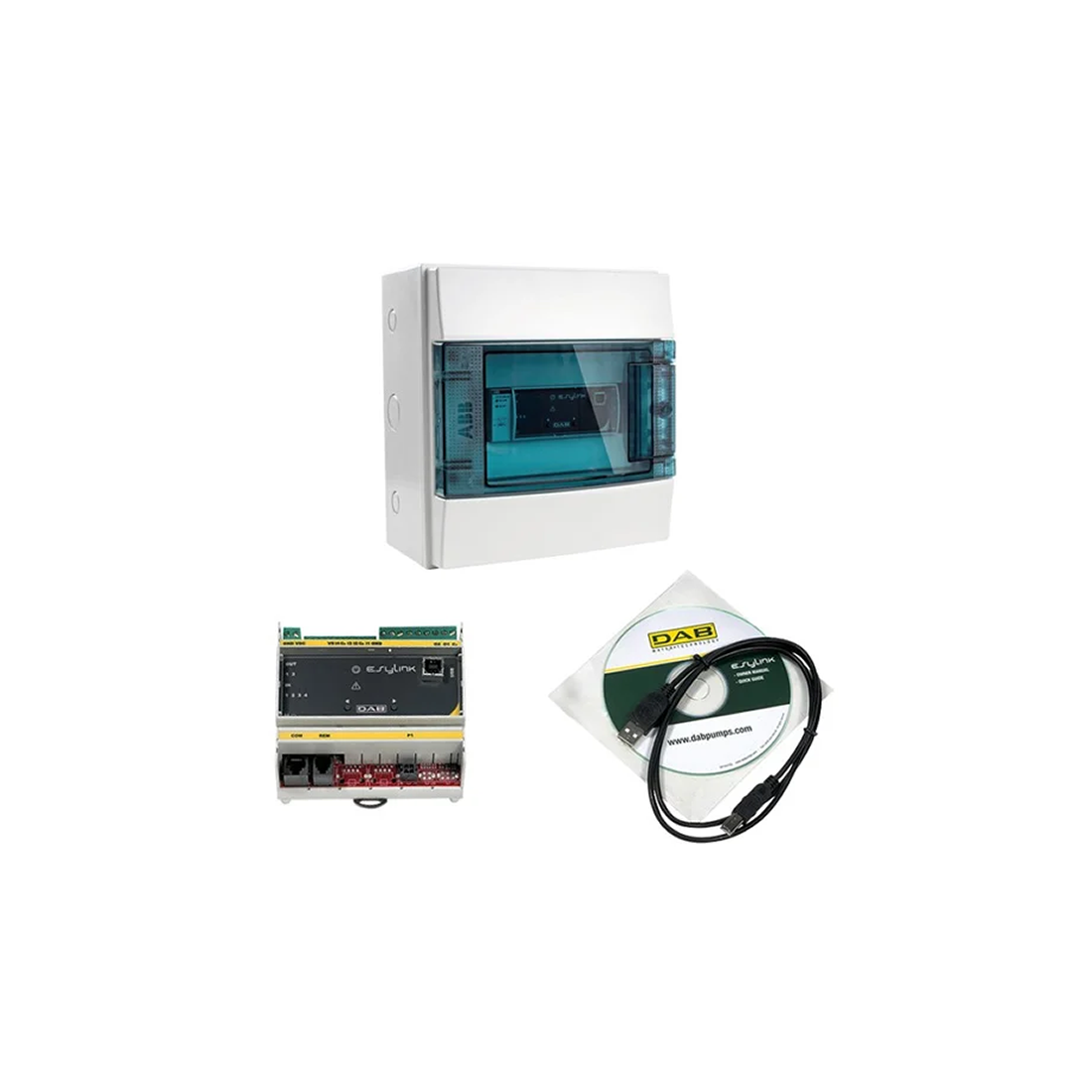

Included Components:
ESYLINK device
USB cable
8DIN electric box
Power feeder
3 cable clamps
Power Specifications:
Supply voltage: 24 V ± 20%
Current: Minimum 55 mA @ 24V, Maximum 150 mA @ 24V
